RESONANT FREQUENCY

17.5±0.7KHZ

RESONANT IMPEDANCE

≤300Ω

STATIC CAPACITY

5000±30%PF

PLATE MATERIAL

BRASS

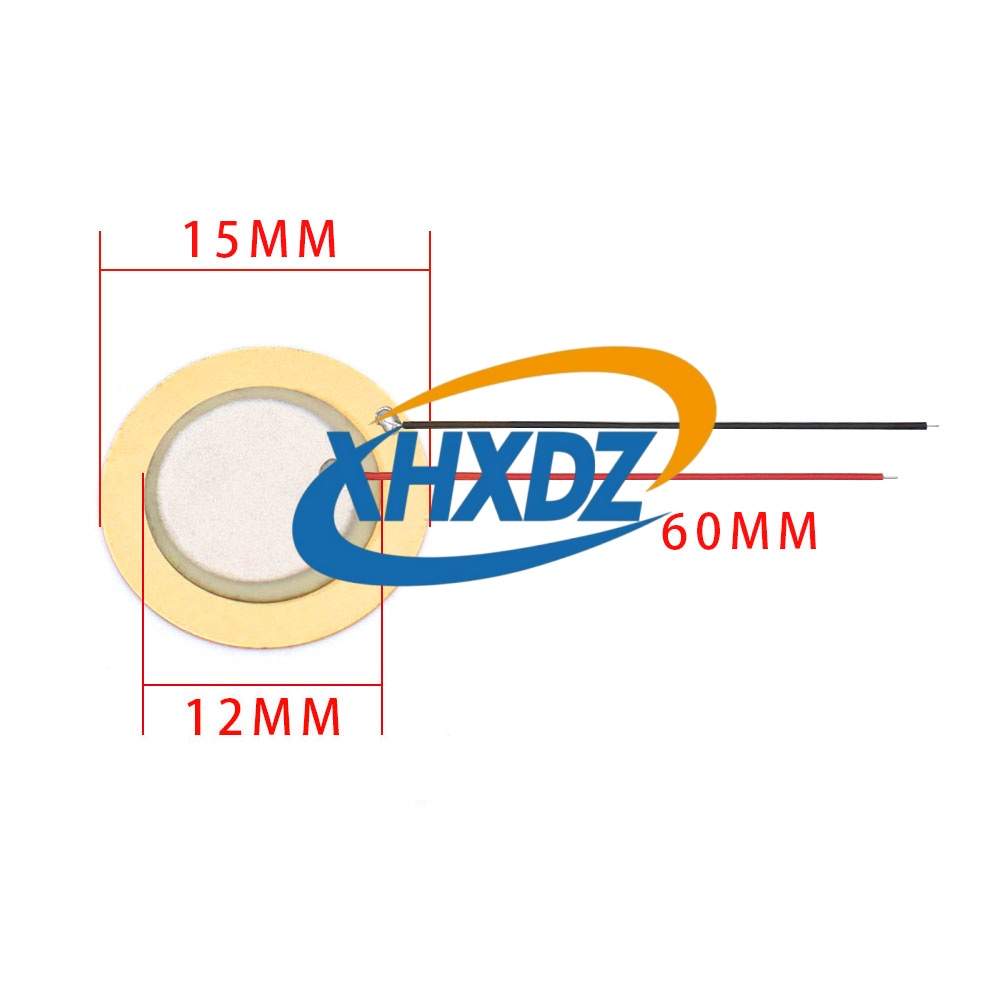

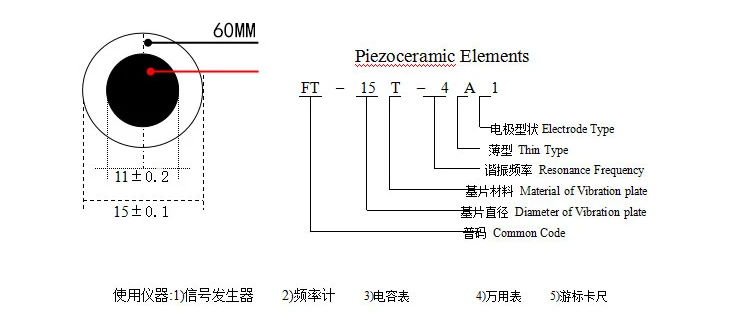

The metal plate diameter

12±0.1

The ceramic plate diameter

9±0.2

Thickness of sheet metal

0.13±0.03

Total thickness

0.33±0.03

ALLOWABLEINPUT VOLT

 Vp-p max 1.5~30v

OPERATING TEMP

-20℃ ~70℃
