Oscillation Frequency

3500±500Hz

Operating Voltage

3 ~ 20VDC

Rated Voltage

12VDC

Current Consumption

MAX. 12mA

Sound Pressure Level

MIN. 100dB

Operating Temperature

-20 ~ +60℃

Storage Temperature

-30 ~ +70℃

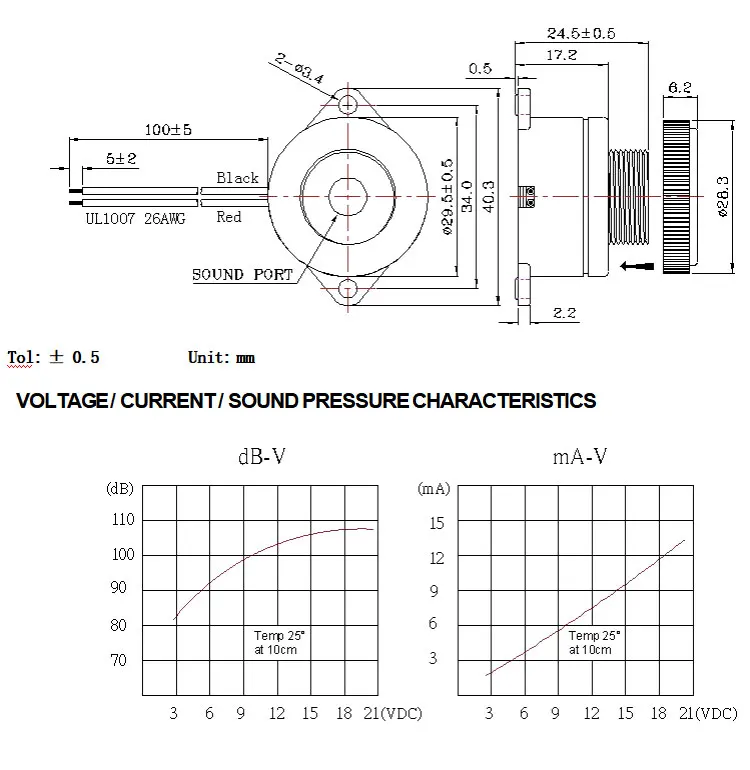

Dimension

Φ30x H24.5mm

Housing Material

ABS( Black )

Leading Pin

Wire Type

Environmental Protection Regulation

RoHS
