Oscillation Frequency

3000±0.5Hz

Operating Voltage

3 ~ 20VDC

Rated Voltage

9VDC

Current Consumption

MAX. 50mA

Sound Pressure Level

MIN.100dB

Operating Temperature

-20 ~ +60℃

Storage Temperature

-30 ~ +70℃

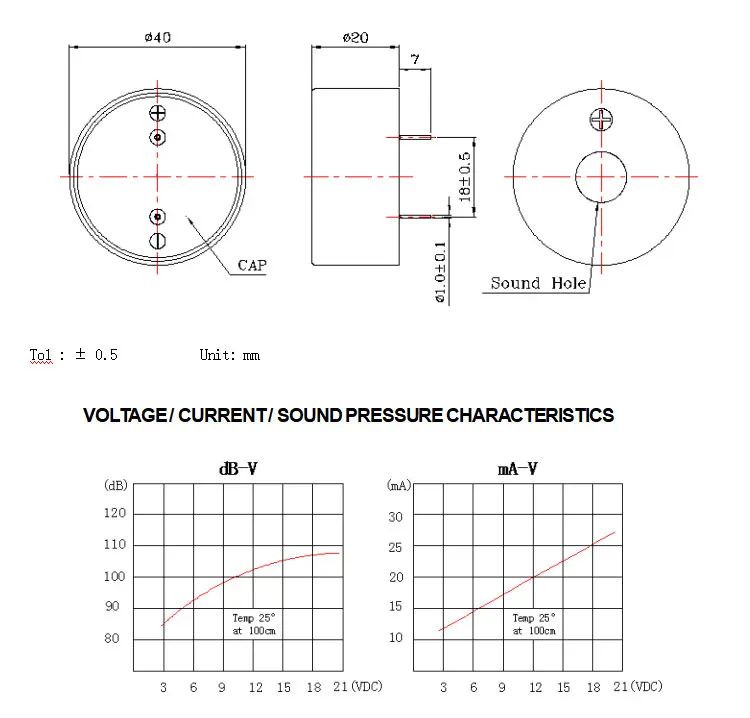

Dimension

Φ40.0 x H20mm

Housing Material

ABS( Black )

Leading Pin

Wire Type

Environmental Protection Regulation

RoHS
