RESISTANCE

6 ± 15% ohm

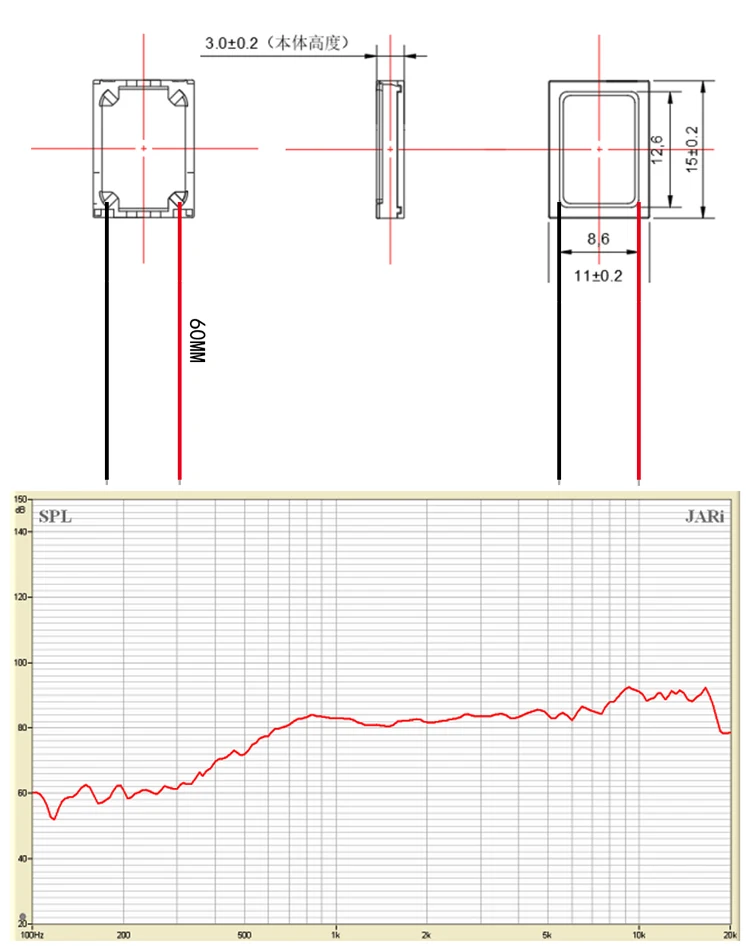

SOUND PRESSURE LEVEL

92.6 ±3dB (at 0.8K,1.0K,1.2K,1.5KHz,2KHz 0dB=20μPa)
Measurement is as shown in fig(2), Input: 0.22V/0.1m

RESPONSE FREQUENCY

Fo: 600 Hz±15% (free air)entered 0.22V
Fo: 900 Hz±15% (1CC Chamber housing)entered 2.2V

INPUT POWR
(NOM./MAX.)

0.8W / 1.0 W ( 1CC cavity shell )

AUDIBLE NOISE

Must be free audible noise
(From 300 Hz to 3.5KHz frequency range sweep 1CC Chamber housing, Input: 2.2V)

DISTORTION

Less than 10% at 1KHz 0.22V/10cm

OPERATING TEMPERATURE

-20℃ to +70℃

STORAGE TEMPERATURE

-20℃ to +80℃
