Rated Imp

4ohm±15%

Resonance Freq

200Hz±20%

Output S.P.L.

85±3dB

Rated Power

3 W

Max Power

5 W

Frequency Range

F0----20 KHz

Insulation Resistance

10MΩ

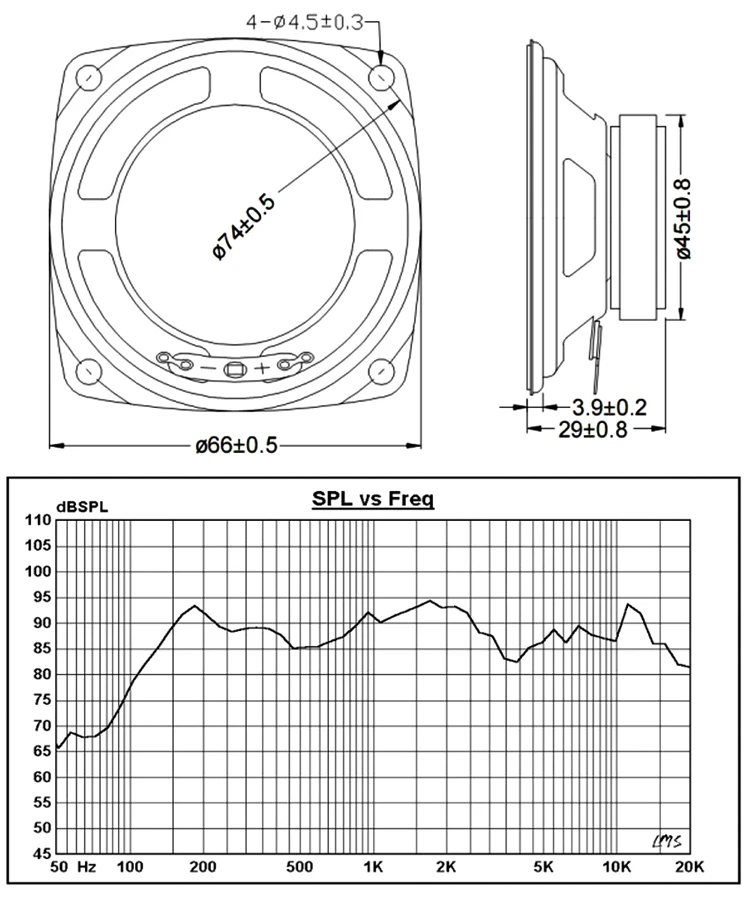

Magnet

45 × 22 × 8

Polarity

When A Positive D.C Voltage Is Applied To The Terminal Marked (+)
Or Red, The Diaphragm Should Move To The Front.
